Instructions For Small Pellet Stove

This post will show small pellet stove information. Whether you’re looking to buy inserts or a freestanding pellet range, read our thorough guide on how they work if they’re cost-efficient, and which type is best suited for you. In chillier environments, heating accounts for about one-third of a homeowner’s yearly energy bill, which is why many are looking for thriftier methods to stay warm. Freestanding pellet ranges and inserts that fit inside an existing fireplace are progressively popular solutions. They appear like standard wood stoves but run more like a contemporary heating system.

Small Pellet Stove For Shed You Can Use Complete Guide

In this article, you can know about small pellet stoves here are the details below;

Pellet Stoves: Are They Worth It?

You need just fill the stove’s hopper with pellets made from compacted sawdust, set its thermostat, relax, and get cozy. A mechanical auger deposits the pellets into a burn pot. They are incinerated at such a heat that they create no vent-clogging creosote and little ash or emissions, which keeps indoor and outside air cleaner.

The very best part is that they have to do twice as efficiently at warming your house as older wood stoves that have not been accredited by the Environmental Protection Agency (EPA) and are vastly more effective than fireplaces.

Pro2ProTip: Pellet stoves heat your house much like a heating system does while likewise supplying a flame to gather around.

Depending on your home’s size and design, a pellet stove might supplement the present heating unit or be utilized as the sole source. Regardless of its workhorse reputation, pellet stoves have been available in a range of designs to match any interior design.

Continue reading for This Old House’s professional advice on buying, installing, and shooting up among these energy-wise heating systems.

How Much Do Pellet Stoves and Inserts price?

About $1,000 to $5,000 for a pellet range or an insert, depending on design, size, and heat outputs, plus another $300 or two for the vent pipeline or chimney liner.

Do It Yourself or employ like a pro?

Unless you are comfortable cutting holes in your home for the venting, leave the setup to the pros. Pipelines can run horizontally out an exterior wall, vertically through the roofing, or up the chimney if adding inserts. Expect to pay from $250 to $1,000, depending on the complexity of the job.

How much cleanup?

Pellet stoves develop a small portion of the ash produced by an older wood-burning range or fireplace, so cleansing is much less frequent. If used every day, empty the ash pan once a week.

Are there federal government incentives to purchase them?

Some states offer property- or income-tax refunds; some, such as New York, don’t charge sales tax on pellets. Consult your state’s department of energy for information.

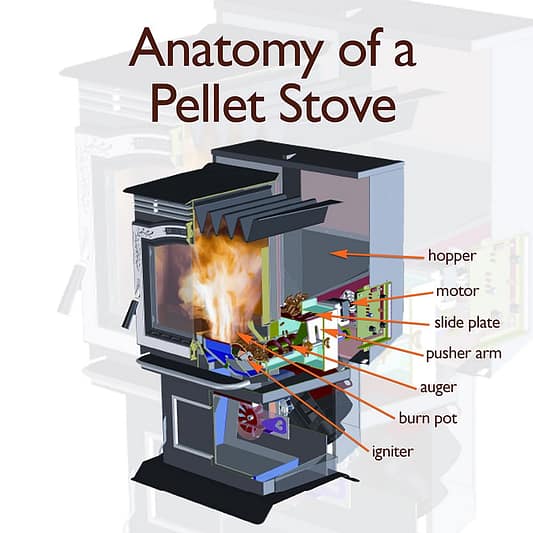

How Do Pellet Stoves Work?

Pellets are immediately fed from a storage hopper into a burn pot, producing a consistent flame that requires no tending.

Heat-exchange tubes: Send air heated by fires into the room.

Hopper: Stores pellets to be burned.

Convection Fan: Circulates air through heat exchange tubes and into the room.

Burn pot: Holds pellets for combustion.

Auger: Feeds pellets from the hoppers to burn pot, where they are ignited.

Ash pan: Collects remains of unburned pellets.

Grille: Allows space air to be pulled in by a convection fan.

Intake vent: Pulls outside air into the burn pot.

Exhaust vent: Takes away combustion gases.

Combustion fan: Pulls in outdoor air and tires gases.

The biggest difference between a pellet stove and its primary competitor, a wood stove, is that, inside, the pellet stove is a modern device with a circuit board, a thermostat, and fans– all of which collaborate to heat your space effectively. Here are the other essential differences between the two.

Pellet Stoves vs. Wood Stoves

What Size Stove to Buy


Pellet: Sixty to 80 percent of the fuel is transformed to heat your home.

Wood: Thirty to 80 percent (luxury is for EPA-certified ranges made after 1990).


Pellet: High-quality pellets restrict ash pan cleaning to as soon as a week or less. Scrape the burnt pot weekly to remove combustion residue and unburned pellets. CCleansand inspects vents at the outset of the heating season.

Wood: Remove ash for each to 3 days. Tidy the chimney and check the range and the door gasket at the beginning of the heating season.

Pellet: Very little smoke; the exhaust is prepared outside with a fan through a horizontal or vertical vent pipe.

Wood: A passive system needing a vertical chimney so that smoke can increase and stream outside.

What Is a Pellet?

What Size Stove to Buy

Fuel availability.

Pellet: Find 40-pound bags of pellets at home centers and hardware supermarkets in cold environments. Dealerships will likewise deliver pellets by the ton.

Wood: You might be able to harvest your wood. However, it must be effectively skilled. It’s also offered by the bundle at shops or by the cord from tree-care pros.

Fuel storage.

Pellet: Bags of pellets need to be kept inside to guard against wet infiltration.

Wood: Wood can be stacked outside undercover and far from your house to prevent damage from termites.

What Is a Pellet?

It’s a little pill made of wood waste, mainly sawdust. Pellets have a low wetness content, 5 to 10 percent, compared to 20 percent for experienced firewood. In some areas, you might discover pellets made of switchgrass or cornstalks. Corn kernels can likewise be used instead of pellets.

What Size Stove to Buy:

Performance is impacted by your home’s design, insulation, and local environment, but usually, 5,000 Btus of firepower will heat to 200 square feet. For an accurate match for your space, have a dealer visit your home and suggest a design.

Just remember that the heat from your stove will be concentrated in spaces closest to where it’s set up. If utilized for additional heat, one trick is to put the stove near a heater return vent and run the heater fan to distribute the warm air throughout your home. A ceiling fan with its blades kipping down reverse can likewise assist in distributing warmed air.

Cost Comparison:

As the sole heating system for a 2,000-square-foot home in a cold climate, expect to invest $3,000 to purchase and set up the brand-new stove, plus $980 for four lots of pellets. The time it takes for the range to pay itself off depends on your current heating fuel.

Oil – Runs $1,857 per winter season or $877 more than pellets. You can recover the cost in about four years.

Electrical energy – costs about $2,306 a year, or $1,326 more than pellets. Expect a return on your investment in year three.

Gas and this fuel are cheaper, at $623 each year, but if you’re presently utilizing a fireplace or an older wood stove for additional heat, you will save in the long run by switching to pellets.

Where to Put a Pellet Stove.

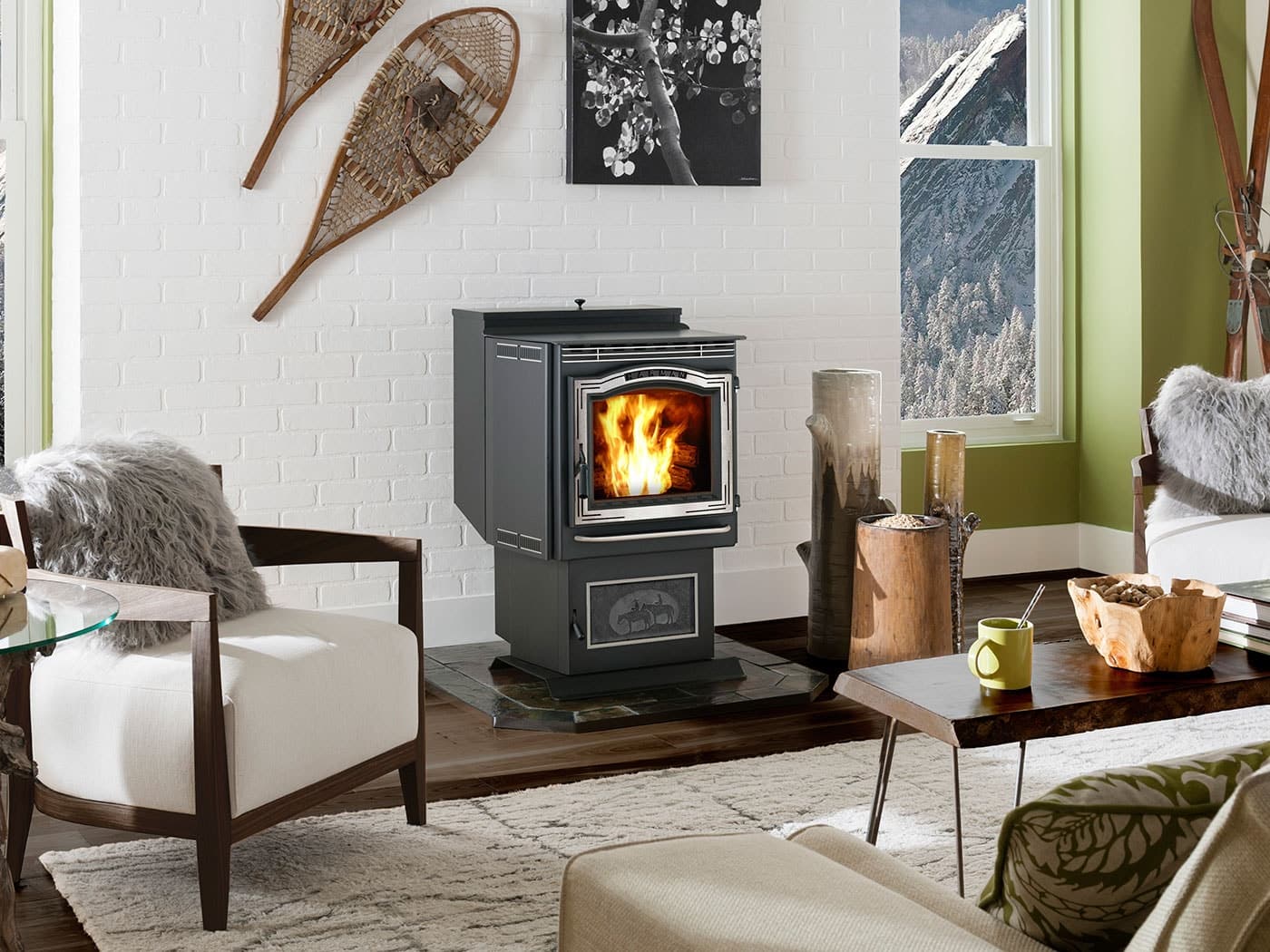

Freestanding Pellet Stove Near Wall.

Freestanding pellet ranges, such as this Harman XXV design, have a very little footprint in space. They can normally be put 1 to 3 inches from the back wall and 6 to 7 inches from the sidewalls.

Safe clearances.

Because of the heat they generate, pellet ranges need to be at least 36 inches from furnishings and drapes and placed out of the primary foot-traffic areas, particularly in homes with kids.


The exhaust pipe, which can go straight out an outside wall or up through the roof or chimney, needs to be firmly sealed to prevent flue gases from getting into the home. A 2nd intake line provides outside air for combustion.

Power supply.

Almost all pellet ranges need a neighboring outlet to run the fans, thermostat, and circuit board. If the stove is your sole heating system, consider including a battery backup (about $300) in case your electricity heads out.

Floor security.

Pellet ranges must rest on a noncombustible surface area, such as stone or ceramic tile, to guard against errant embers. A pad must extend 6 inches beyond the door.

Fireplace Pellet Stove Insert.

A conventional fireplace looks excellent, but it’s a poor heat generator. Most of the flame’s heat, plus warmed air from the rest of your home, goes right up the chimney.

To transform your hearth into an effective heater, you can fit the firebox with pellet-stove inserts, such as the Harman P35i model shown at left. A dealer can assist you in discovering a unit and a metal surround to best fit your hearth’s dimensions. But since a metal liner should be fitted inside the chimney for ventilation, setup is best delegated to a chimney professional. This work may also need to be authorized by a local inspector before the stove can be run.

Pellet Stove Styles.

You can get freestanding stoves % inserts for an existing fireplace to complement both traditional and contemporary interior areas. Here are some of our favorites.

Lopi Leyden.

Classic Lopi Leyden Pellet Stove With Ash Pan.

This vintage-look range has a big firebox relative to its medium-sized frame. The ash pan is fitted with drawer glides to alleviate cleanup.

About $3,700 for this 45,000-Btu design, in matte black just;

Harman Accentra.

The 40,000-Btu range has a 50-pound hopper capacity and an ash pan large enough to burn a lot of pellets before it requires to be cleared.

About $3,600, in matte black or gloss-brown;

Enviro Empress.

Cast Iron Enviro Empress Pellet Stove.

The cast-iron insert, which extends only nine inches into the hearth, has a 55-pound hopper capability and a classical arched surround.

About $2,800 for this 34,000-Btu design, in gloss black, white, or brown;

HearthStone Manchester.

HearthStone Manchester Pellet Stove With Glass Door.

This souped-up stove has a large glass door, a sixty-pound hopper capacity, and automatic cleansing cycles that lessen maintenance.

About $4,600 for this 51,000-Btu model in gloss brown, or $4,300 in gloss black;

Thelin Gnome.

Thelin Gnome 34 Inch Pellet Stove.

This diminutive 34-inch heater resembles an old potbellied woodstove. Its size and 27,000 Btu output make it perfect for little spaces.

Begins at $2,490, in matte black, gloss black, or gloss cream;

Lennox Bella.

Lennox Bella LCD Panel Pellet Stove.

The system has an LCD panel to keep track of the stove’s operation and a whisper-quiet combustion fan and auger motor.

About $4,300 for this 43,000-Btu model, in gloss black or brown;

How to Identify Pellet Quality.

Digital Studio. The Pellet Fuels Institutes has two grades for pellets: premium, which is generally made from just wood, and standard, which contains some bark. Premium pellets are partially more costly than standard about $5.50 for a 40-pound bag, but they produce less ash.

Another indicator of quality is the number of fines, or dust, at the bottom of the bag; there needs to be less than 0.5 percent, which exercises to half a cup. Any more dust can produce merged ash chunks, called clinkers, that block airflow into the range. The last variable is sodium content; pellets ought to have fewer than 300 parts per million (ppm) to ensure an efficient burn.

Pellet Stove Accessories.

You don’t require tools to tend the fire, but a few option devices can enhance the look and function of your pellet stove.

Log set.

Pellet Stove Logs.

Digital Studio. Get the appearance of a wood-burning fire by setting up ceramic logs around the pellet burn pot. These logs are from Lopi, but many other stove producers design sets for their units, too.

About $85;


Pellet Stove Steamer.

Offer the air much-needed moisture with a steamers pot. These lattice-style casts-iron ones with a red enamel finish likewise include a pop of color to your range.

About $40 (small) and $60 (large);


Wood Pellet Scuttle.

Digital Studio. Much more captivating than a plastic bag next to your range, these old-timey coal scuttles have a spout, and double manages that make it a cinch to pour pellets into the hopper.

About $40 for galvanized steels and $35 for copperplate;

Prefab Pad.

Pad For Pellet Stove.

Build your own or chooses from a variety of pre-made pads in a material and pattern to fit your style. We enjoy this western flagstone one with a running-bond style.

Starting at $346;

Pellet Stove Remote Control.

Digital Studio. When paired with a transmitter that keeps track of range and room temperatures, a remote lets you adjust heat output from your armchair. This model works just with Napoleon stoves, but most manufacturers offer a similar setup.
